t1 DOM basic

textarea

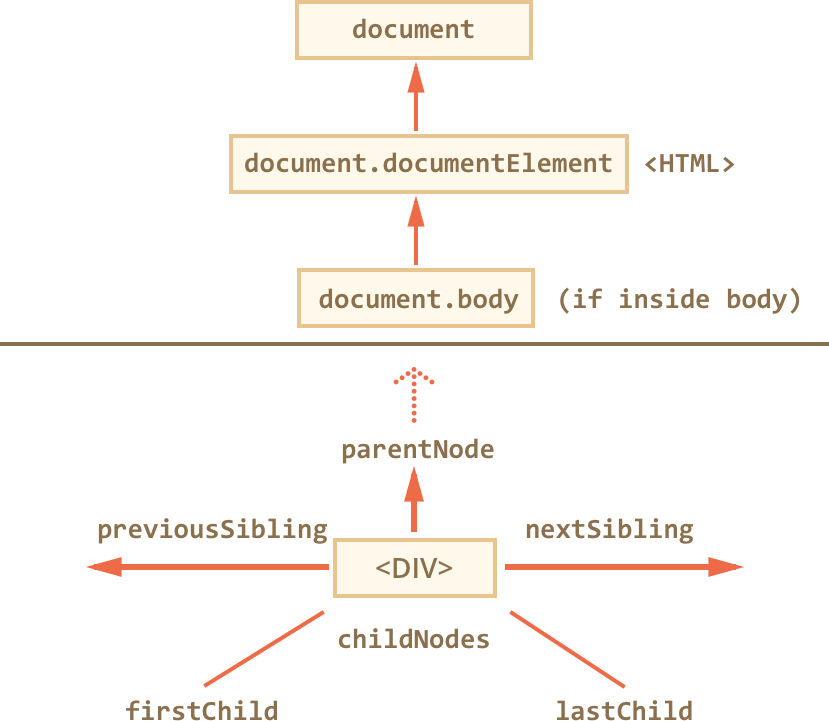

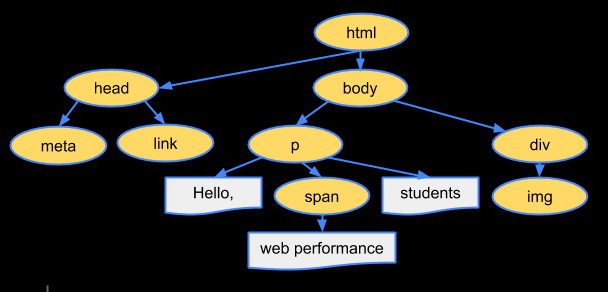

DOM TREE

參考

📋 在console 中測試。

onlive dom tree

💻

<!DOCTYPE HTML>
<html>
 <head>
  <title>Live DOM Viewer</title>
  <style>
   h1 { margin: 0; }
   h2 { font-size: small; margin: 1em 0 0; }
   p, ul, pre { margin: 0; }
   p { border: inset thin; }
   textarea { width: 100%; -width: 99%; height: 8em; border: 0; }
   iframe { width: 100%; height: 12em; border: 0; }
/* iframe.large { height: 24em; } */
   pre { border: inset thin; padding: 0.5em; color: gray; }
   pre samp { color: black; }
   #dom { border: inset thin; padding: 0.5em 0.5em 0.5em 1em; color: black; min-height: 5em; font-family: monospace; background: white; }
   #dom ul { padding: 0 0 0 1em; margin: 0; }
   #dom li { padding: 0; margin: 0; list-style: none; position: relative; }
   #dom li li { list-style: disc; }
   #dom .t1 code { color: purple; font-weight: bold; }
   #dom .t2 { font-style: normal; font-family: monospace; }
   #dom .t2 .name { color: black; font-weight: bold; }
   #dom .t2 .value { color: blue; font-weight: normal; }
   #dom .t3 code, #dom .t4 code, #dom .t5 code { color: gray; }
   #dom .t7 code, #dom .t8 code { color: green; }
   #dom span { font-style: italic; font-family: serif; }
   #dom .t10 code { color: teal; }
   #dom .misparented, #dom .misparented code { color: red; font-weight: bold; }
   #dom .unnamed { color: red; font-style: italic; }
   #dom .template { padding: 0 0 0 1.5em; background: #EEEEEE; color: black; position: relative; overflow: hidden; }
   #dom .template::after { position: absolute; top: 1em; right: -2.6em; content: 'TEMPLATE'; width: 10em; text-align: center; transform: rotate(30deg); background: black; color: white; }
   #dom.hidden, .hidden { visibility: hidden; margin: 0.5em 0; padding: 0; height: 0; min-height: 0; }
   pre#log { color: black; font: small monospace; }
   script + p { border: none; font-size: smaller; margin: 0.8em 0.25em 0.1em; }
   script + p + details { font-size: smaller; margin: 0 0.25em; }
   script + p + details dl { margin: 0 0 0 1.5em; }
   script + p + details dl dd { margin: 0 0 0.35em 1em; }
  </style>
  <style title="Tree View">
   #dom li li { list-style: none; }
   #dom li:first-child::before { position: absolute; top: 0; height: 0.7em; left: -0.75em; width: 0.5em; border-style: none none solid solid; content: ''; border-width: 0.1em; }
   #dom li:not(:last-child)::after { position: absolute; top: 0; bottom: -0.7em; left: -0.75em; width: 0.5em; border-style: none none solid solid; content: ''; border-width: 0.1em; }
  </style>
  <script>
   if (navigator.userAgent.match('Gecko/(\\d+)') && RegExp.$1 == '20060217' && RegExp.$1 != '00000000') {
     var style = document.getElementsByTagName('style')[1];
     style.parentNode.removeChild(style);
   }
  </script>
 </head>
 <body onload="init()">
  <h1>Live DOM Viewer</h1>
  <h2>Markup to test (<a href="data:," id="permalink" rel="bookmark">permalink</a>, <a href="javascript:save()" id="save">save</a>, <a href="javascript:up()">upload</a>, <a href="javascript:down()">download</a>, <!--<a href="javascript:filetestbug()" title="Files the test in the W3C HTML bug database as a testsuite bug">bug</a>,--> <a href="#" onclick="toggleVisibility(this); return false">hide</a>): <span id="network-status"></span></h2>
  <p><textarea oninput="updateInput(event)" onkeydown="updateInput(event)">&lt;!DOCTYPE html>
...</textarea></p>
  <h2><a href="data:," id="domview">DOM view</a> (<a href="#" onclick="toggleVisibility(this); return false;">hide</a>, <a href="#" onclick="updateDOM()">refresh</a>):</h2>
  <ul id="dom"></ul>
  <h2><a href="data:," id="link">Rendered view</a>: (<a href="#" onclick="toggleVisibility(this); return false;">hide</a><!--, <a href="#" onclick="grow(this)">grow</a>-->):</h2>
  <p><iframe src="00 empty html.html"></iframe></p> <!-- data:, -->
  <h2>innerHTML view: (<a href="#" onclick="toggleVisibility(this); return false;">show</a>, <a href="#" onclick="updateDOM()">refresh</a>):</h2>
  <pre class="hidden">&lt;!DOCTYPE HTML>&lt;html><samp></samp>&lt;/html></pre>
  <h2>Log: (<a href="#" onclick="toggleVisibility(this); return false;">hide</a>):</h2>
  <pre id="log">Script not loaded.</pre>
  <script>
   var iframe = document.getElementsByTagName('iframe')[0];
   var textarea = document.getElementsByTagName('textarea')[0];
   var pre = document.getElementsByTagName('samp')[0];
   var dom = document.getElementsByTagName('ul')[0];
   var log = document.getElementById('log');
   var networkStatus = document.getElementById('network-status');
   var delayedInputUpdater = 0;
   var delayedDOMUpdater = 0;
   var lastString = '';
   function updateInput(event) {
     if (delayedInputUpdater)
       clearTimeout(delayedInputUpdater);
     delayedInputUpdater = setTimeout(update, 100);
   }
   function updateIframe() {
     while (log.firstChild)
       log.removeChild(log.lastChild);
     iframe.contentWindow.document.open();
     iframe.contentWindow.onerror = function (a, b, c) {
       record('error: ' + a + ' on line ' + c);
     }
     iframe.contentWindow.w = function (s) {
       if ((iframe.contentWindow.Event) && (s instanceof iframe.contentWindow.Event)) { // why doesn't this work?
         var target = s.target;
         if (target instanceof iframe.contentWindow.Node) {
           if (target instanceof iframe.contentWindow.Element) {
             target = '<' + target.nodeName;
             if (target.id) {
               target += ' id="' + target.id + '"';
             }
             target += '>';
           } else {
             // ...
           }
         } else {
           target = '"' + target + '"'
         }
         var interface = s.toString();
         var bubbles = s.bubbles ? '; bubbles' : '';
         var cancelable = s.cancelable ? '; cancelable' : '';
         record('log: event "' + s.type + '" using interface "' + interface + '" targetted at ' + target + '' + bubbles + cancelable);
       } else if (typeof s == 'object') {
         var n = 0;
         props = '';
         for (var i in s) {
           n += 1;
           if (n < 5) {
             if (n == 1) {
               props += ': ';
             } else {
               props += ', ';
             }
             if (typeof s[i] == 'string' || typeof s[i] == 'object')
               props += i + '="' + s[i] + '"';
             else
               props += i + '=' + s[i];
           }
         }
         if (n >= 5) {
           props += '...';
         }
         props = props.replace(/\n/g, '\\n');
         record('log: object "' + s + '" (' + n + ' props' + props + ')');
       } else {
         record('log: ' + s);
       }
     }
     iframe.contentWindow.document.write(textarea.value);
     iframe.contentWindow.document.close();
   }
   function update() {
     if (lastString != textarea.value) {
       document.getElementById('link').href = 'data:text/html;charset=utf-8,' + encodeURIComponent(textarea.value);
       try {
         updateIframe(); // clears log
       } catch (e) {
         var p = iframe.parentNode;
         p.removeChild(iframe);
         iframe = document.createElement('iframe');
         iframe.setAttribute('src', 'blank.html');
         p.appendChild(iframe);
         updateIframe();
         record('internal error: ' + e.message);
       }
       lastString = textarea.value;
       if (delayedDOMUpdater)
         clearTimeout(delayedDOMUpdater);
       delayedDOMUpdater = setTimeout(updateDOM, 100);
       network('');
     }
   }
   function updateDOM() {
     while (pre.firstChild) pre.removeChild(pre.firstChild);
     if (!iframe.contentWindow.document.documentElement)
       pre.appendChild(document.createTextNode("[no document element]"));
     else
       pre.appendChild(document.createTextNode(iframe.contentWindow.document.documentElement.innerHTML));
     printDOM(dom, iframe.contentWindow.document);
     document.getElementById('domview').href = 'data:text/plain;charset=utf-8,' + encodeURIComponent('<ul class="domTree">' + dom.innerHTML + '</ul>');
     document.getElementById('permalink').href = '?' + encodeURIComponent(textarea.value);
     record('rendering mode: ' + iframe.contentWindow.document.compatMode);
     if (iframe.contentWindow.document.title)
       record('document.title: ' + iframe.contentWindow.document.title);
     else
       record('document has no title');
   }
   function printDOM(ul, node) {
     while (ul.firstChild) ul.removeChild(ul.firstChild);
     for (var i = 0; i < node.childNodes.length; i += 1) {
       var li = document.createElement('li');
       li.className = 't' + node.childNodes[i].nodeType;
       if (node.childNodes[i].nodeType == 10) {
         li.appendChild(document.createTextNode('DOCTYPE: '));
       }
       if (node.childNodes[i].nodeName) {
         var code = document.createElement('code');
         code.appendChild(document.createTextNode(node.childNodes[i].nodeName));
         li.appendChild(code);
       } else {
         var span = document.createElement('span');
         span.appendChild(document.createTextNode("no name"));
         span.className = 'unnamed';
         li.appendChild(span);
       }
       if (node.childNodes[i].nodeValue) {
         var span = document.createElement('span');
         span.appendChild(document.createTextNode(node.childNodes[i].nodeValue));
         li.appendChild(document.createTextNode(': '));
         li.appendChild(span);
       }
       if (node.childNodes[i].attributes)
         for (var j = 0; j < node.childNodes[i].attributes.length; j += 1) {
           if (node.childNodes[i].attributes[j].specified) {
             var attName = document.createElement('code');
             attName.appendChild(document.createTextNode(node.childNodes[i].attributes[j].nodeName));
             attName.className = 'attribute name';
             var attValue = document.createElement('code');
             attValue.appendChild(document.createTextNode(node.childNodes[i].attributes[j].nodeValue));
             attValue.className = 'attribute value';
             var att = document.createElement('span');
             att.className = 't2';
             att.appendChild(attName);
             att.appendChild(document.createTextNode('="'));
             att.appendChild(attValue);
             att.appendChild(document.createTextNode('"'));
             li.appendChild(document.createTextNode(' '));
             li.appendChild(att);
           }
         }
       if (node.childNodes[i].parentNode == node) {
         if (node.childNodes[i].childNodes.length) {
           var ul2 = document.createElement('ul');
           li.appendChild(ul2);
           printDOM(ul2, node.childNodes[i]);
         }
         if (node.childNodes[i].content) {
           var ul2 = document.createElement('ul');
           li.appendChild(ul2);
           ul2.className = 'template';
           printDOM(ul2, node.childNodes[i].content);
         }
       } else {
         li.className += ' misparented';
       }
       ul.appendChild(li);
     }
   }
   function toggleVisibility(link) {
     var n = link.parentNode.nextSibling;
     if (n.nodeType == 3 /* text node */) n = n.nextSibling; // we should always do this but in IE, text nodes vanish
     n.className = (n.className == "hidden") ? '' : 'hidden';
     link.firstChild.data = n.className == "hidden" ? "show" : "hide";
   }
/*
   function grow(link) {
     var n = link.parentNode.nextSibling;
     if (n.nodeType == 3 /-* text node *-/) n = n.nextSibling; // we should always do this but in IE, text nodes vanish
     n.className = (n.className == "large") ? '' : 'large';
     link.firstChild.data = n.className == "grow" ? "shrink" : "grow";
   }
*/
   function down() {
     network('downloading...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('downloading... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         textarea.value = request.responseText;
         update();
         network('downloaded');
       }
     };
     request.open('GET', 'clipboard.cgi', true);
     request.send(null);
   }
   function up() {
     network('uploading...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('uploading... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         network('uploaded');
       }
     };
     request.open('POST', 'clipboard.cgi', true);
     request.setRequestHeader('Content-Type', 'text/plain');
     request.send(textarea.value);
   }
   function save() {
     network('saving...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('saving... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         network('saved to', location.protocol + '//' + location.host + location.pathname + 'saved/' + request.responseText);
       }
     };
     request.open('POST', 'saved', true);
     request.setRequestHeader('Content-Type', 'text/plain');
     request.send(textarea.value);
   }
   function filetestbug() {
     if (!confirm('Are you sure you wish to file a bug to remind you to add this to the W3C HTML test suite?'))
       return;
     network('filing...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('filing... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         network('filed as ', request.responseText);
       }
     };
     request.open('POST', 'file-as-bug', true);
     request.setRequestHeader('Content-Type', 'text/plain');
     request.send(textarea.value);
   }
   function load(id) {
     network('loading...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('loading... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         textarea.value = decodeURIComponent(request.responseText);
         update();
         network('loaded');
       }
     };
     request.open('GET', 'saved/' + id + '?mode=data', true);
     request.send(null);
   }
   function init() {
     var uri = location.search;
     if (uri.match(/^\?saved=/)) {
       load(uri.substring(7, uri.length));
     } else if (uri) {
       textarea.value = decodeURIComponent(uri.substring(1, uri.length));
     }
     update();
   }
   function record(s) {
     log.appendChild(document.createTextNode(s + '\r\n'));
   }
   function network(s, a) {
     while (networkStatus.firstChild) networkStatus.removeChild(networkStatus.firstChild);
     networkStatus.appendChild(document.createTextNode(s));
     if (a) {
       networkStatus.appendChild(document.createTextNode(' '));
       var link = document.createElement('a');
       link.appendChild(document.createTextNode(a));
       link.href = a;
       networkStatus.appendChild(link);
     }
   }
  </script>
  <p>This script puts a function <code>w(<var>s</var>)</code> into the
  global scope of the test page, where <var>s</vaR> is a string or
  object to output to the log.</p>
  <details onclick="setTimeout(function () { this.getElementsByTagName('summary')[0].textContent = this.open ? 'Some files are available for testing purposes:' : 'Some files are available for testing purposes, notably &quot;image&quot; is an image.' }.bind(this), 0)">
    <summary>Some files are available for testing purposes, notably "image" is an image.</summary>
    <dl>
     <dt> <code>image</code> and <code>image.swf</code> <dd> a GIF image of two cats
     <dt> <code>null</code> <dd> a PNG image of the word "null"
     <dt> <code>flash</code> <dd> a Flash file
     <dt> <code>flash-as-text</code> and <code>flash-as-text.swf</code> <dd> a Flash file sent as text/plain
     <dt> <code>flash-as-image.swf</code> <dd> a Flash file sent as image/gif
     <dt> <code>script</code> <dd> a JS file
     <dt> <code>style</code> <dd> a CSS file
     <dt> <code>document</code> <dd> an HTML file
     <dt> <code>alertdoc</code> <dd> an HTML file with a script that alerts
     <dt> <code>delayed-image</code> <dd> a GIF image after a two-second pause
     <dt> <code>delayed-script</code> <dd> a JS file after a two-second pause
     <dt> <code>xhtml</code> <dd> an XHTML file
     <dt> <code>xml</code> <dd> an XML file
     <dt> <code>xml-as-svg</code> <dd> an XML file sent with the SVG MIME type
     <dt> <code>xml-broken</code> <dd> a malformed XML file
     <dt> <code>svg</code> <dd> an SVG file
     <dt> <code>svg-as-xml</code> <dd> an SVG file sent with the XML MIME type
     <dt> <code>download</code> <dd> the same file as <code>image</code>, but with a Content-Disposition header set to <code>inline</code> with a filename
    </dl>
  </details>
 </body>
</html>

<!DOCTYPE HTML>
<html>
 <head>
  <title>Live DOM Viewer</title>
  <style>
   h1 { margin: 0; }
   h2 { font-size: small; margin: 1em 0 0; }
   p, ul, pre { margin: 0; }
   p { border: inset thin; }
   textarea { width: 100%; -width: 99%; height: 8em; border: 0; }
   iframe { width: 100%; height: 12em; border: 0; }
/* iframe.large { height: 24em; } */
   pre { border: inset thin; padding: 0.5em; color: gray; }
   pre samp { color: black; }
   #dom { border: inset thin; padding: 0.5em 0.5em 0.5em 1em; color: black; min-height: 5em; font-family: monospace; background: white; }
   #dom ul { padding: 0 0 0 1em; margin: 0; }
   #dom li { padding: 0; margin: 0; list-style: none; position: relative; }
   #dom li li { list-style: disc; }
   #dom .t1 code { color: purple; font-weight: bold; }
   #dom .t2 { font-style: normal; font-family: monospace; }
   #dom .t2 .name { color: black; font-weight: bold; }
   #dom .t2 .value { color: blue; font-weight: normal; }
   #dom .t3 code, #dom .t4 code, #dom .t5 code { color: gray; }
   #dom .t7 code, #dom .t8 code { color: green; }
   #dom span { font-style: italic; font-family: serif; }
   #dom .t10 code { color: teal; }
   #dom .misparented, #dom .misparented code { color: red; font-weight: bold; }
   #dom .unnamed { color: red; font-style: italic; }
   #dom .template { padding: 0 0 0 1.5em; background: #EEEEEE; color: black; position: relative; overflow: hidden; }
   #dom .template::after { position: absolute; top: 1em; right: -2.6em; content: 'TEMPLATE'; width: 10em; text-align: center; transform: rotate(30deg); background: black; color: white; }
   #dom.hidden, .hidden { visibility: hidden; margin: 0.5em 0; padding: 0; height: 0; min-height: 0; }
   pre#log { color: black; font: small monospace; }
   script + p { border: none; font-size: smaller; margin: 0.8em 0.25em 0.1em; }
   script + p + details { font-size: smaller; margin: 0 0.25em; }
   script + p + details dl { margin: 0 0 0 1.5em; }
   script + p + details dl dd { margin: 0 0 0.35em 1em; }
  </style>
  <style title="Tree View">
   #dom li li { list-style: none; }
   #dom li:first-child::before { position: absolute; top: 0; height: 0.7em; left: -0.75em; width: 0.5em; border-style: none none solid solid; content: ''; border-width: 0.1em; }
   #dom li:not(:last-child)::after { position: absolute; top: 0; bottom: -0.7em; left: -0.75em; width: 0.5em; border-style: none none solid solid; content: ''; border-width: 0.1em; }
  </style>
  <script>
   if (navigator.userAgent.match('Gecko/(\\d+)') && RegExp.$1 == '20060217' && RegExp.$1 != '00000000') {
     var style = document.getElementsByTagName('style')[1];
     style.parentNode.removeChild(style);
   }
  </script>
 </head>
 <body onload="init()">
  <h1>Live DOM Viewer</h1>
  <h2>Markup to test (<a href="data:," id="permalink" rel="bookmark">permalink</a>, <a href="javascript:save()" id="save">save</a>, <a href="javascript:up()">upload</a>, <a href="javascript:down()">download</a>,  <a href="#" onclick="toggleVisibility(this); return false">hide</a>): <span id="network-status"></span></h2>
  <p><textarea oninput="updateInput(event)" onkeydown="updateInput(event)">&lt;!DOCTYPE html>
...</textarea></p>
  <h2><a href="data:," id="domview">DOM view</a> (<a href="#" onclick="toggleVisibility(this); return false;">hide</a>, <a href="#" onclick="updateDOM()">refresh</a>):</h2>
  <ul id="dom"></ul>
  <h2><a href="data:," id="link">Rendered view</a>: (<a href="#" onclick="toggleVisibility(this); return false;">hide</a>):</h2>
  <p><iframe src="00 empty html.html"></iframe></p>
  <h2>innerHTML view: (<a href="#" onclick="toggleVisibility(this); return false;">show</a>, <a href="#" onclick="updateDOM()">refresh</a>):</h2>
  <pre class="hidden">&lt;!DOCTYPE HTML>&lt;html><samp></samp>&lt;/html></pre>
  <h2>Log: (<a href="#" onclick="toggleVisibility(this); return false;">hide</a>):</h2>
  <pre id="log">Script not loaded.</pre>
  <script>
   var iframe = document.getElementsByTagName('iframe')[0];
   var textarea = document.getElementsByTagName('textarea')[0];
   var pre = document.getElementsByTagName('samp')[0];
   var dom = document.getElementsByTagName('ul')[0];
   var log = document.getElementById('log');
   var networkStatus = document.getElementById('network-status');
   var delayedInputUpdater = 0;
   var delayedDOMUpdater = 0;
   var lastString = '';
   function updateInput(event) {
     if (delayedInputUpdater)
       clearTimeout(delayedInputUpdater);
     delayedInputUpdater = setTimeout(update, 100);
   }
   function updateIframe() {
     while (log.firstChild)
       log.removeChild(log.lastChild);
     iframe.contentWindow.document.open();
     iframe.contentWindow.onerror = function (a, b, c) {
       record('error: ' + a + ' on line ' + c);
     }
     iframe.contentWindow.w = function (s) {
       if ((iframe.contentWindow.Event) && (s instanceof iframe.contentWindow.Event)) { // why doesn't this work?
         var target = s.target;
         if (target instanceof iframe.contentWindow.Node) {
           if (target instanceof iframe.contentWindow.Element) {
             target = '<' + target.nodeName;
             if (target.id) {
               target += ' id="' + target.id + '"';
             }
             target += '>';
           } else {
             // ...
           }
         } else {
           target = '"' + target + '"'
         }
         var interface = s.toString();
         var bubbles = s.bubbles ? '; bubbles' : '';
         var cancelable = s.cancelable ? '; cancelable' : '';
         record('log: event "' + s.type + '" using interface "' + interface + '" targetted at ' + target + '' + bubbles + cancelable);
       } else if (typeof s == 'object') {
         var n = 0;
         props = '';
         for (var i in s) {
           n += 1;
           if (n < 5) {
             if (n == 1) {
               props += ': ';
             } else {
               props += ', ';
             }
             if (typeof s[i] == 'string' || typeof s[i] == 'object')
               props += i + '="' + s[i] + '"';
             else
               props += i + '=' + s[i];
           }
         }
         if (n >= 5) {
           props += '...';
         }
         props = props.replace(/\n/g, '\\n');
         record('log: object "' + s + '" (' + n + ' props' + props + ')');
       } else {
         record('log: ' + s);
       }
     }
     iframe.contentWindow.document.write(textarea.value);
     iframe.contentWindow.document.close();
   }
   function update() {
     if (lastString != textarea.value) {
       document.getElementById('link').href = 'data:text/html;charset=utf-8,' + encodeURIComponent(textarea.value);
       try {
         updateIframe(); // clears log
       } catch (e) {
         var p = iframe.parentNode;
         p.removeChild(iframe);
         iframe = document.createElement('iframe');
         iframe.setAttribute('src', 'blank.html');
         p.appendChild(iframe);
         updateIframe();
         record('internal error: ' + e.message);
       }
       lastString = textarea.value;
       if (delayedDOMUpdater)
         clearTimeout(delayedDOMUpdater);
       delayedDOMUpdater = setTimeout(updateDOM, 100);
       network('');
     }
   }
   function updateDOM() {
     while (pre.firstChild) pre.removeChild(pre.firstChild);
     if (!iframe.contentWindow.document.documentElement)
       pre.appendChild(document.createTextNode("[no document element]"));
     else
       pre.appendChild(document.createTextNode(iframe.contentWindow.document.documentElement.innerHTML));
     printDOM(dom, iframe.contentWindow.document);
     document.getElementById('domview').href = 'data:text/plain;charset=utf-8,' + encodeURIComponent('<ul class="domTree">' + dom.innerHTML + '</ul>');
     document.getElementById('permalink').href = '?' + encodeURIComponent(textarea.value);
     record('rendering mode: ' + iframe.contentWindow.document.compatMode);
     if (iframe.contentWindow.document.title)
       record('document.title: ' + iframe.contentWindow.document.title);
     else
       record('document has no title');
   }
   function printDOM(ul, node) {
     while (ul.firstChild) ul.removeChild(ul.firstChild);
     for (var i = 0; i < node.childNodes.length; i += 1) {
       var li = document.createElement('li');
       li.className = 't' + node.childNodes[i].nodeType;
       if (node.childNodes[i].nodeType == 10) {
         li.appendChild(document.createTextNode('DOCTYPE: '));
       }
       if (node.childNodes[i].nodeName) {
         var code = document.createElement('code');
         code.appendChild(document.createTextNode(node.childNodes[i].nodeName));
         li.appendChild(code);
       } else {
         var span = document.createElement('span');
         span.appendChild(document.createTextNode("no name"));
         span.className = 'unnamed';
         li.appendChild(span);
       }
       if (node.childNodes[i].nodeValue) {
         var span = document.createElement('span');
         span.appendChild(document.createTextNode(node.childNodes[i].nodeValue));
         li.appendChild(document.createTextNode(': '));
         li.appendChild(span);
       }
       if (node.childNodes[i].attributes)
         for (var j = 0; j < node.childNodes[i].attributes.length; j += 1) {
           if (node.childNodes[i].attributes[j].specified) {
             var attName = document.createElement('code');
             attName.appendChild(document.createTextNode(node.childNodes[i].attributes[j].nodeName));
             attName.className = 'attribute name';
             var attValue = document.createElement('code');
             attValue.appendChild(document.createTextNode(node.childNodes[i].attributes[j].nodeValue));
             attValue.className = 'attribute value';
             var att = document.createElement('span');
             att.className = 't2';
             att.appendChild(attName);
             att.appendChild(document.createTextNode('="'));
             att.appendChild(attValue);
             att.appendChild(document.createTextNode('"'));
             li.appendChild(document.createTextNode(' '));
             li.appendChild(att);
           }
         }
       if (node.childNodes[i].parentNode == node) {
         if (node.childNodes[i].childNodes.length) {
           var ul2 = document.createElement('ul');
           li.appendChild(ul2);
           printDOM(ul2, node.childNodes[i]);
         }
         if (node.childNodes[i].content) {
           var ul2 = document.createElement('ul');
           li.appendChild(ul2);
           ul2.className = 'template';
           printDOM(ul2, node.childNodes[i].content);
         }
       } else {
         li.className += ' misparented';
       }
       ul.appendChild(li);
     }
   }
   function toggleVisibility(link) {
     var n = link.parentNode.nextSibling;
     if (n.nodeType == 3 /* text node */) n = n.nextSibling; // we should always do this but in IE, text nodes vanish
     n.className = (n.className == "hidden") ? '' : 'hidden';
     link.firstChild.data = n.className == "hidden" ? "show" : "hide";
   }
/*
   function grow(link) {
     var n = link.parentNode.nextSibling;
     if (n.nodeType == 3 /-* text node *-/) n = n.nextSibling; // we should always do this but in IE, text nodes vanish
     n.className = (n.className == "large") ? '' : 'large';
     link.firstChild.data = n.className == "grow" ? "shrink" : "grow";
   }
*/
   function down() {
     network('downloading...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('downloading... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         textarea.value = request.responseText;
         update();
         network('downloaded');
       }
     };
     request.open('GET', 'clipboard.cgi', true);
     request.send(null);
   }
   function up() {
     network('uploading...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('uploading... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         network('uploaded');
       }
     };
     request.open('POST', 'clipboard.cgi', true);
     request.setRequestHeader('Content-Type', 'text/plain');
     request.send(textarea.value);
   }
   function save() {
     network('saving...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('saving... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         network('saved to', location.protocol + '//' + location.host + location.pathname + 'saved/' + request.responseText);
       }
     };
     request.open('POST', 'saved', true);
     request.setRequestHeader('Content-Type', 'text/plain');
     request.send(textarea.value);
   }
   function filetestbug() {
     if (!confirm('Are you sure you wish to file a bug to remind you to add this to the W3C HTML test suite?'))
       return;
     network('filing...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('filing... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         network('filed as ', request.responseText);
       }
     };
     request.open('POST', 'file-as-bug', true);
     request.setRequestHeader('Content-Type', 'text/plain');
     request.send(textarea.value);
   }
   function load(id) {
     network('loading...');
     var request = window.XMLHttpRequest ? new XMLHttpRequest() : new ActiveXObject("Microsoft.XMLHTTP");
     request.onreadystatechange = function () {
       network('loading... ' + request.readyState + '/4');
       if (request.readyState == 4) {
         textarea.value = decodeURIComponent(request.responseText);
         update();
         network('loaded');
       }
     };
     request.open('GET', 'saved/' + id + '?mode=data', true);
     request.send(null);
   }
   function init() {
     var uri = location.search;
     if (uri.match(/^\?saved=/)) {
       load(uri.substring(7, uri.length));
     } else if (uri) {
       textarea.value = decodeURIComponent(uri.substring(1, uri.length));
     }
     update();
   }
   function record(s) {
     log.appendChild(document.createTextNode(s + '\r\n'));
   }
   function network(s, a) {
     while (networkStatus.firstChild) networkStatus.removeChild(networkStatus.firstChild);
     networkStatus.appendChild(document.createTextNode(s));
     if (a) {
       networkStatus.appendChild(document.createTextNode(' '));
       var link = document.createElement('a');
       link.appendChild(document.createTextNode(a));
       link.href = a;
       networkStatus.appendChild(link);
     }
   }
  </script>
  <p>This script puts a function <code>w(<var>s</var>)</code> into the
  global scope of the test page, where <var>s</vaR> is a string or
  object to output to the log.</p>
  <details onclick="setTimeout(function () { this.getElementsByTagName('summary')[0].textContent = this.open ? 'Some files are available for testing purposes:' : 'Some files are available for testing purposes, notably &quot;image&quot; is an image.' }.bind(this), 0)">
    <summary>Some files are available for testing purposes, notably "image" is an image.</summary>
    <dl>
     <dt> <code>image</code> and <code>image.swf</code> <dd> a GIF image of two cats
     <dt> <code>null</code> <dd> a PNG image of the word "null"
     <dt> <code>flash</code> <dd> a Flash file
     <dt> <code>flash-as-text</code> and <code>flash-as-text.swf</code> <dd> a Flash file sent as text/plain
     <dt> <code>flash-as-image.swf</code> <dd> a Flash file sent as image/gif
     <dt> <code>script</code> <dd> a JS file
     <dt> <code>style</code> <dd> a CSS file
     <dt> <code>document</code> <dd> an HTML file
     <dt> <code>alertdoc</code> <dd> an HTML file with a script that alerts
     <dt> <code>delayed-image</code> <dd> a GIF image after a two-second pause
     <dt> <code>delayed-script</code> <dd> a JS file after a two-second pause
     <dt> <code>xhtml</code> <dd> an XHTML file
     <dt> <code>xml</code> <dd> an XML file
     <dt> <code>xml-as-svg</code> <dd> an XML file sent with the SVG MIME type
     <dt> <code>xml-broken</code> <dd> a malformed XML file
     <dt> <code>svg</code> <dd> an SVG file
     <dt> <code>svg-as-xml</code> <dd> an SVG file sent with the XML MIME type
     <dt> <code>download</code> <dd> the same file as <code>image</code>, but with a Content-Disposition header set to <code>inline</code> with a filename
    </dl>
  </details>
 </body>
</html>

代入解釋

📋 下面的demo pack 用來代入上面的live demo。

代入

原始碼(ex_DOM_0樹狀結構.html)

<!DOCTYPE html>

<html>
<head>

</head>
<body>
<div>
<p>paragrah 1</p>
<p>paragraph 2</p>
</div>
<input id="btn1" name="k1" type="button" value="button 1" >
<button id="btn2">也是按鈕</button>
<input  name="k2" type="button" value="button 2" >
<script>
  //empty
</script>

</body>
</html>

示範:利用javascript 操作按鈕(in class) 目的:DOM做甚麼用的(例如和JS之間的關係) 前後文:註解用後續:在現有的NODE中加入html

在另一個視窗打開上面的文件。然後在主控台上操作下面的指令

x= document.querySelector("#btn1")
x.style //<!--html_preserve--><span  data-bs-toggle="tooltip" data-bs-html="true" data-bs-placement="bottom" title="看看可以操作甚麼">🏷️</span><!--/html_preserve-->
x.position = "fix"
x.right= "0px"; //<!--html_preserve--><span  data-bs-toggle="tooltip" data-bs-html="true" data-bs-placement="bottom" title="10vw❓">🏷️</span><!--/html_preserve-->
x.top = "30vh"

代入
原始碼(01 operator.html)
```
<!DOCTYPE html>
<html>
<head>


</head>
<body>

      <script>

            var a = 33;
            var b = 10;
            var c = "Test";
            var linebreak = "<br />";

            document.write("a + b = ");
            result = a + b;
            document.write(result);
            document.write(linebreak);

            document.write("a - b = ");
            result = a - b;
            document.write(result);
            document.write(linebreak);

            document.write("a / b = ");
            result = a / b;
            document.write(result);
            document.write(linebreak);

            document.write("a % b = ");
            result = a % b;
            document.write(result);
            document.write(linebreak);

            document.write("a + b + c = ");
            result = a + b + c;
            document.write(result);
            document.write(linebreak);

            a = ++a;
            document.write("++a = ");
            result = ++a;
            document.write(result);
            document.write(linebreak);

            b = --b;
            document.write("--b = ");
            result = --b;
            document.write(result);
            document.write(linebreak);

      </script>

</body>
</html>
```
<!DOCTYPE html> <html> <head> </head> <body> <script> var a = 33; var b = 10; var c = "Test"; var linebreak = "<br />"; document.write("a + b = "); result = a + b; document.write(result); document.write(linebreak); document.write("a - b = "); result = a - b; document.write(result); document.write(linebreak); document.write("a / b = "); result = a / b; document.write(result); document.write(linebreak); document.write("a % b = "); result = a % b; document.write(result); document.write(linebreak); document.write("a + b + c = "); result = a + b + c; document.write(result); document.write(linebreak); a = ++a; document.write("++a = "); result = ++a; document.write(result); document.write(linebreak); b = --b; document.write("--b = "); result = --b; document.write(result); document.write(linebreak); </script> </body> </html>

❓根據下圖DOM tree,寫出對應的html

<!DOCTYPE html>
<html>
  <head>
    <meta name="viewport" content="width=device-width,initial-scale=1">
    <link href="xxx.css" rel="stylesheet">
  </head>
  <body>
   <p>Hello,<span>web performance</span> student.</p>
    <div >
      <img src="xxx.jpg">
    </div>
  </body>
</html>

<!DOCTYPE html>
<html>
  <head>
  </head>
  <body>
  <div>
   這是text
   <p>Hello, DOM.</p>
   <img src="xxx.jpg">
  </div>
  </body>
</html>

在你的網頁畫出上面的DOM,並解說。😜

demo2

💡 html render
